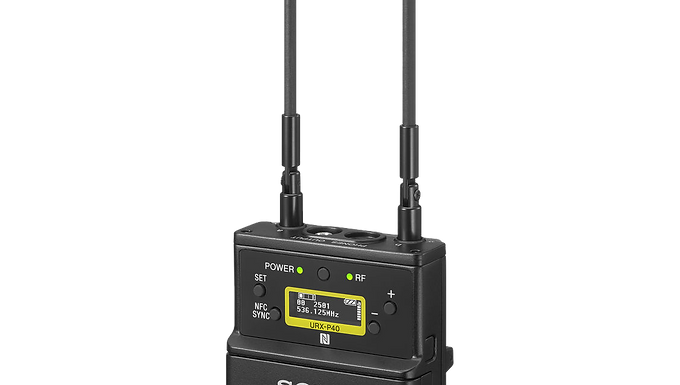

Sony URX-P40 Wireless Receiver

The Sony URX-P40 is a camera-mount wireless receiver that delivers uncompromising audio quality while still being easy to use and fast to set up with no menu diving. It is made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew. The receiver is packed with professional features including NFC Sync and Channel Memory functions, which handle time-consuming setup and adjustments for you, so you're ready to shoot within seconds.

The URX-P40 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. This low-profile camera-mount receiver is designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.

Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with a digital Multi Interface Shoe.

The URX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.


Specs:

Wireless Technology Analog UHF
Number of RF Channel Frequencies 2772
Diversity True Diversity
RF Frequency Band 536 to 608 MHz
RF Bandwidth 72 MHz
Frequency Step Size 25 kHz
Max Operating Range 330' / 100.6 m (Typical)
Max Transmitters per Band 16
Latency 0.35 ms
Modulation FM
Receiver
Receiver Type Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave External, Fixed (Top-Mount)
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Gain Range -12 to +12 dB (3 dB Steps)
Audio Output Level -60 dBV
Frequency Response 23 Hz to 18 kHz
USB/Lightning Connectivity 1 x USB-C (Bus Power)
Power Requirements Battery, Bus Power (USB)
Battery Type 2 x AA (Not Included)
Approx. Battery Life 6 Hours (Alkaline)
Display & Indicators 1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level)
Housing Metal
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 2.7 x 3.2 x 0.9" / 68 x 82 x 23.8 mm (without Antennas)
Weight 6.2 oz / 175.8 g (with Batteries)
